In AWS API Gateway, a Stage represents a specific deployment environment of your API — such as dev, test, or prod. Once a REST API is created and developed, it must be deployed to a stage to be accessible via an endpoint.

Exporting an API from a stage allows you to:

  • Generate an OpenAPI (Swagger) document representing the deployed API structure.
  • Share the API structure with the frontend team, mobile developers, or import into tools like Postman, Swagger UI, Insomnia, etc.
  • Version your API and migrate easily between environments.

Steps

  1. Access AWS API Gateway
  • Open the API Gateway Console

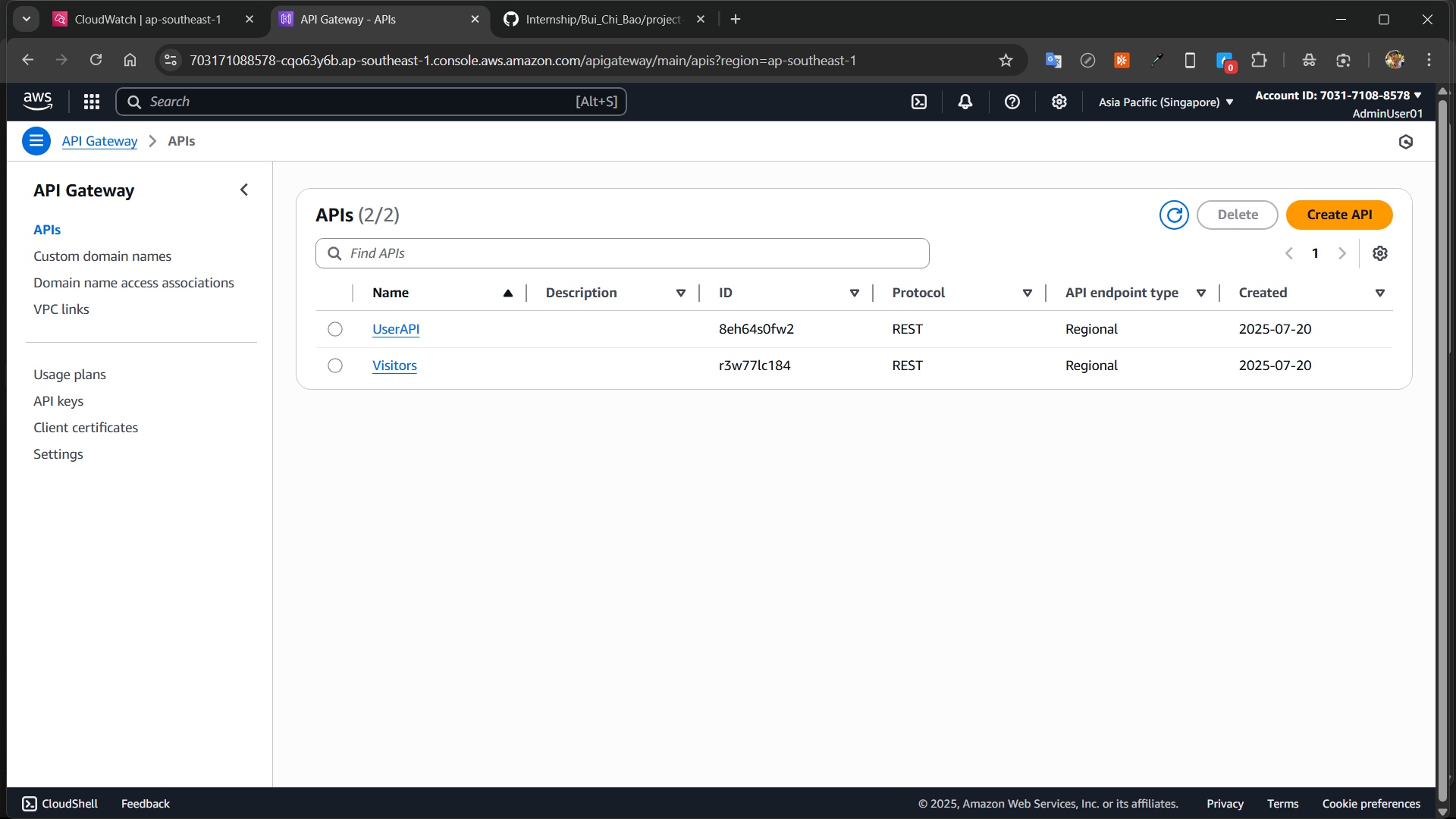

  • Select the REST API you want to export

export

  • In the left panel → Choose Stages

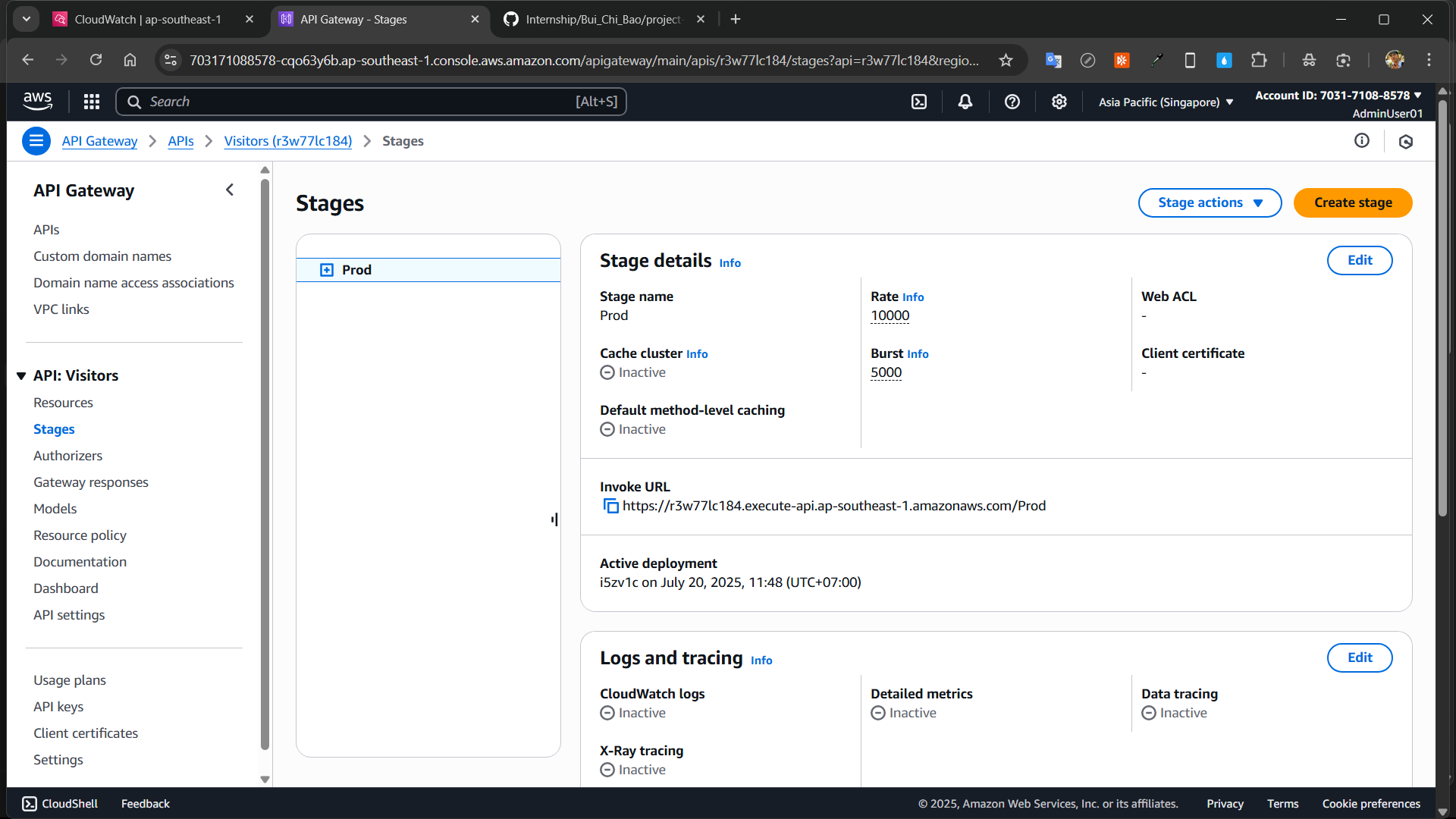

  • Click on the specific stage (e.g., dev, prod)

export

  1. View Stage Information

When a Stage is selected, you’ll see:

  • Invoke URL:
    https://{restapi-id}.execute-api.{region}.amazonaws.com/{stage}
  • Options for logging, throttling, caching, etc.

→ This is the endpoint users can call.

  1. Export the API’s OpenAPI Definition
  • Return to the main API screen (not inside the Stage)

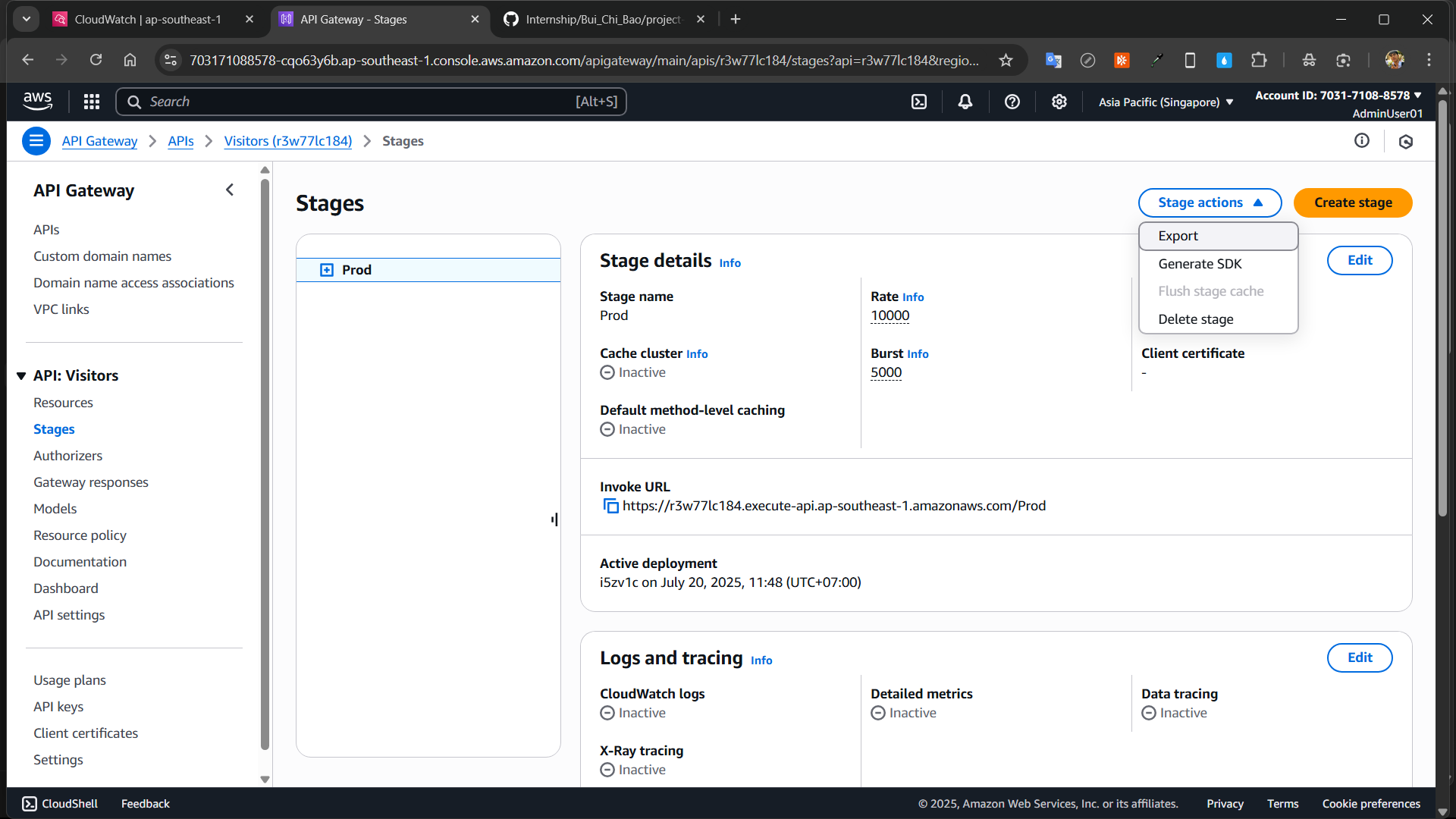

  • Click the Actions button (top-left corner) → Select Export

export

  • Choose the format:

    • Swagger / OpenAPI 2
    • OpenAPI 3

  • Download the file as .json or .yaml

export

→ This file can be imported into Postman, Swagger UI, or other API documentation tools.

  1. Import to Postman
  • Open Postman and click Import in the top-left corner

export

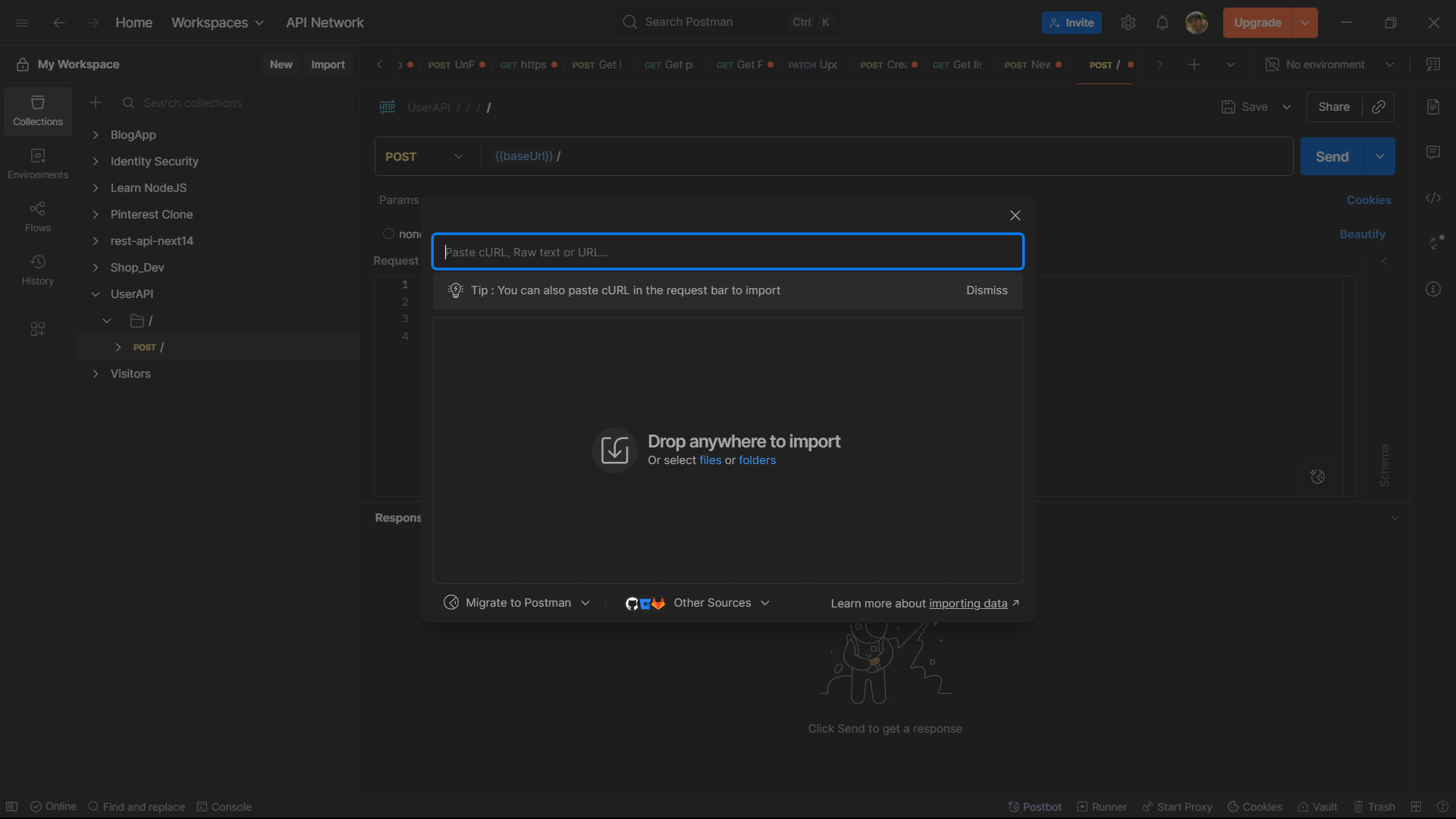

  • Drag and drop the downloaded file and click Import

export

  • Now you can start using the imported API immediately

export
